Steering help needed
« on: December 23, 2010, 02:37:32 PM »

Went to go out in the jeep today - turned the steering wheel and it just turned - tyres did not move

If I pushed the shaft in the engine bay towrds car it would somtimes catch a little.

wondered if splines on the steering steering wheel had stripped - after struggling to get it off  . it is all fine.

Did notice that while puller was on steering wheel it seemed to grip and turned the tyres  :017:

Not got a spare steering column to look at -


Is it easy fixable or new column??

Could it just be that say clamp on steering box has slipped and needs pushing back up?
Logged
If you always do what you have always done You will always get what you have always got
Please give to our Mac4x4 fund: http://www.justgiving.com/The-Smiths-2015

The Smiths

  • Forum Member
  • *
  • Guru: 1
  • Offline Offline
  • Posts: 1084
Re: Steering help needed
« Reply #1 on: December 23, 2010, 03:40:56 PM »

Have dug deeper and found out what it was

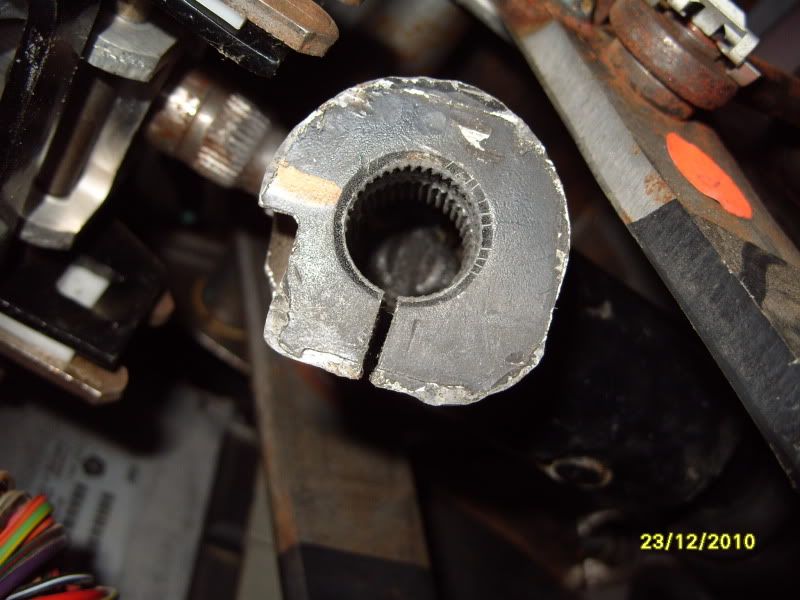

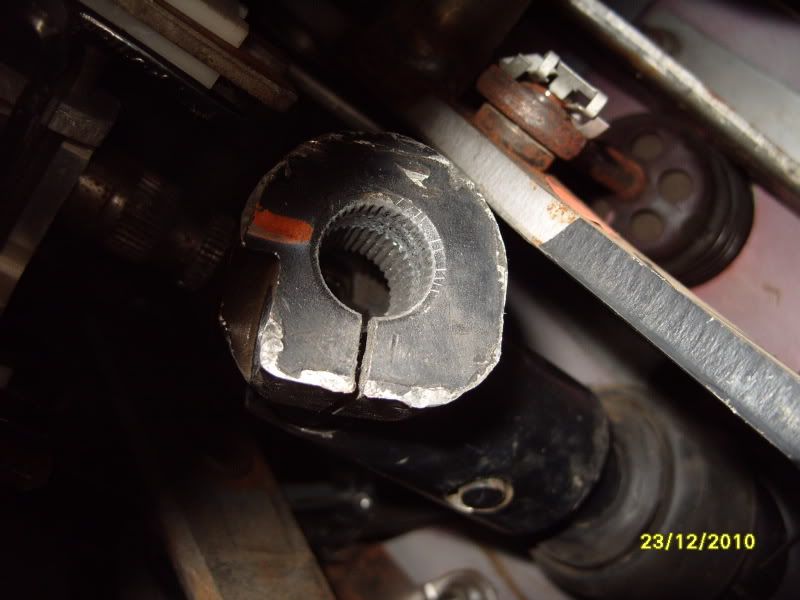

It looks like the UJ at the bottom of the steering column. inside the car, has been removed before - have a look at the photo you can see the hammer marks on it  :jpshakehead:

Then when it has been put back together the bolt was still not removed and the splines were only located on the outer set - not both of them with the bolt in the recess stopping it from pulling out

So the splines have finally stripped




Logged
If you always do what you have always done You will always get what you have always got
Please give to our Mac4x4 fund: http://www.justgiving.com/The-Smiths-2015

tim_aka_tim

  • Club Member
  • Forum Member
  • *
  • Guru: 1
  • Offline Offline
  • Posts: 4464
  • Vehicle: Honda Pilot
  • Year: 2008
  • Regional Organiser North America
Re: Steering help needed
« Reply #2 on: December 23, 2010, 03:53:59 PM »

JEEP OWNERS: Save the energy you use to turn the steering wheel by only driving on straight roads.
Logged

MOCAJ

  • Club Member
  • Forum Member
  • *
  • Guru: 4
  • Offline Offline
  • Posts: 6366
Re: Steering help needed
« Reply #3 on: December 23, 2010, 03:58:47 PM »

was a good job you noticed it when stationary, could have been interesting at an island  :icon_winkle:

or on the motorway, dont bear thinking about  :jpshakehead:
Logged
short term jeep owner since 2005, every truck is a never ending project. Birtys, the best club in Jeepland

Dave69

  • Club Member
  • Forum Member
  • *
  • Guru: 15
  • Offline Offline
  • Posts: 9457
  • Vehicle: CJ-7 4.2 auto
  • Year: 1979
Re: Steering help needed
« Reply #4 on: December 23, 2010, 08:05:24 PM »

your lucky they didn't weld it
Logged
XJ 2.5 diesel - dead. XJ 4.0 6" lift - sold to some lucky person
CJ7 4.2 auto standard(ish)
Alfa 147 jtdm

isle of man

  • بعض العضو التناسلي النسوي...
  • Club Member
  • Forum Member
  • *
  • Guru: 6
  • Offline Offline
  • Posts: 11537
  • Vehicle: G-Class AKA “The G spot”
  • Take the road less travelled...
    • http://www.4x4.im
Re: Steering help needed
« Reply #5 on: December 23, 2010, 09:27:24 PM »

Holy fooooook!!
Logged
"Not all those who wander are lost"

gazjeep

  • Marshal
  • Forum Member
  • *
  • Guru: 9
  • Offline Offline
  • Posts: 7280
  • Vehicle: TJ - Der Panzer - CBR
Re: Steering help needed
« Reply #6 on: December 23, 2010, 10:33:04 PM »

I am not the most mechanically knowledgeable but even I know that's very fooking wrong, thank god you found it how & when you did  :icon_winkle:
Logged
Taking ya girl to heaven & back

Mike Pavelin

  • Guest
Re: Steering help needed
« Reply #7 on: December 24, 2010, 09:11:10 AM »

Bet the clockspring's fooked now though :jpshakehead:
Logged

Bubba

  • "Cooter"
  • Marshal
  • Guru
  • *
  • Guru: 69
  • Offline Offline
  • Posts: 21029
Re: Steering help needed
« Reply #8 on: December 24, 2010, 09:16:25 AM »

i am very glad you found this when not on the move :steeringwheel:
Logged


trucks


shedric
cletus
mr whippy

I spent most of my money on alcohol, women and old  iron........ the rest of it I just wasted.

The Smiths

  • Forum Member
  • *
  • Guru: 1
  • Offline Offline
  • Posts: 1084
Re: Steering help needed
« Reply #9 on: December 24, 2010, 09:57:57 AM »

Bet the clockspring's fooked now though :jpshakehead:

been trying not to turn the wheel too much :icon_redface:


But how many turns is there in the clockspring and how many in the steering?? - just so that I know how much margin of error I've got :icon_redface:

If it does come down to it though I've a spare one in the garage :greggmo:
Logged
If you always do what you have always done You will always get what you have always got
Please give to our Mac4x4 fund: http://www.justgiving.com/The-Smiths-2015

Bubba

  • "Cooter"
  • Marshal
  • Guru
  • *
  • Guru: 69
  • Offline Offline
  • Posts: 21029
Re: Steering help needed
« Reply #10 on: December 24, 2010, 10:03:29 AM »

i cant help wonder if this is somehow prang related  when your jeep had sex with that euro box
Logged


trucks


shedric
cletus
mr whippy

I spent most of my money on alcohol, women and old  iron........ the rest of it I just wasted.

eastryjeep

  • Guest
Re: Steering help needed
« Reply #11 on: December 24, 2010, 10:34:20 AM »

Bloody hell mate that was a close shave!

Might seem a bit of a pisser now but I recon you could say that escape was your best Chrismas Pressie this year!

Why not gently count the availiable turns on your spare clock spring, set the one in the Jeep at the central point and reassemble from there?

Time to start looking for a replacement section of steering column too as yours will only be able to achieve half design strength now, otherwise it's a bit like committing suicide but not knowing if or when the axe is going to fall or exactly on who.

Happy Christmas an all that but please don't do half a job  :steeringwheel:
Logged

The Smiths

  • Forum Member
  • *
  • Guru: 1
  • Offline Offline
  • Posts: 1084
Re: Steering help needed
« Reply #12 on: December 24, 2010, 02:01:00 PM »

Now all back together - pick up the spare steering part last night from a nice chap near Hull :greggmo:


and yes we do feel lucky it went on the drive :icon_biggrin:
Logged
If you always do what you have always done You will always get what you have always got
Please give to our Mac4x4 fund: http://www.justgiving.com/The-Smiths-2015
