Pages: 1 [2]   Go Down

Author Topic: On board air  (Read 4567 times)

0 Members and 1 Guest are viewing this topic.

Delk

  • Guest
Re: On board air
« Reply #25 on: July 11, 2013, 10:34:36 PM »
The best thing to do for the AC compressors is to dissasemble them and pack the bearings full of grease. The little connecting rods and swash plate bearing will last much longer this way.
Logged

IrishCJ6

  • Guru
  • *
  • Guru: 3
  • Offline Offline
  • Posts: 1033
Re: On board air
« Reply #26 on: July 17, 2013, 08:54:12 PM »

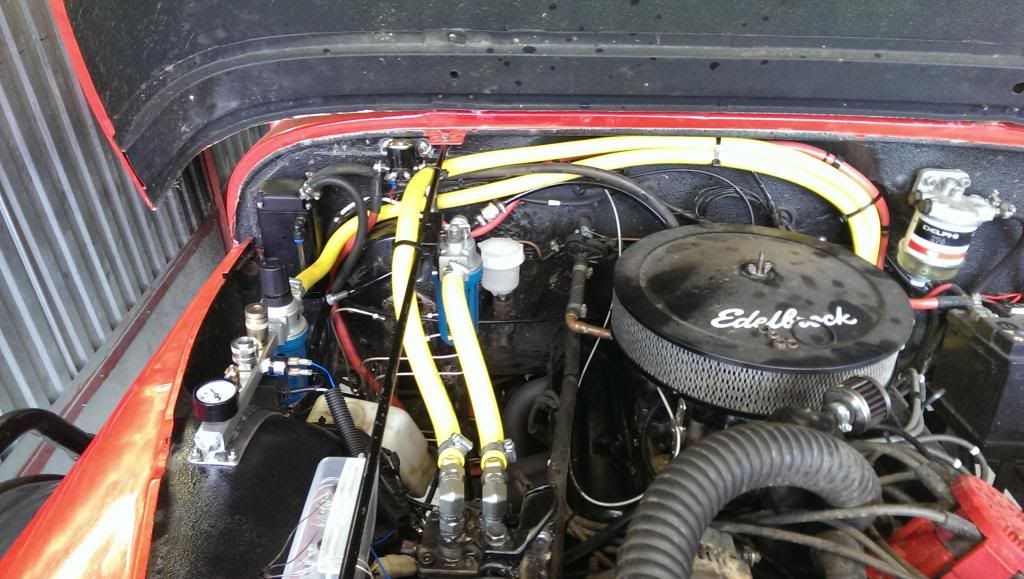

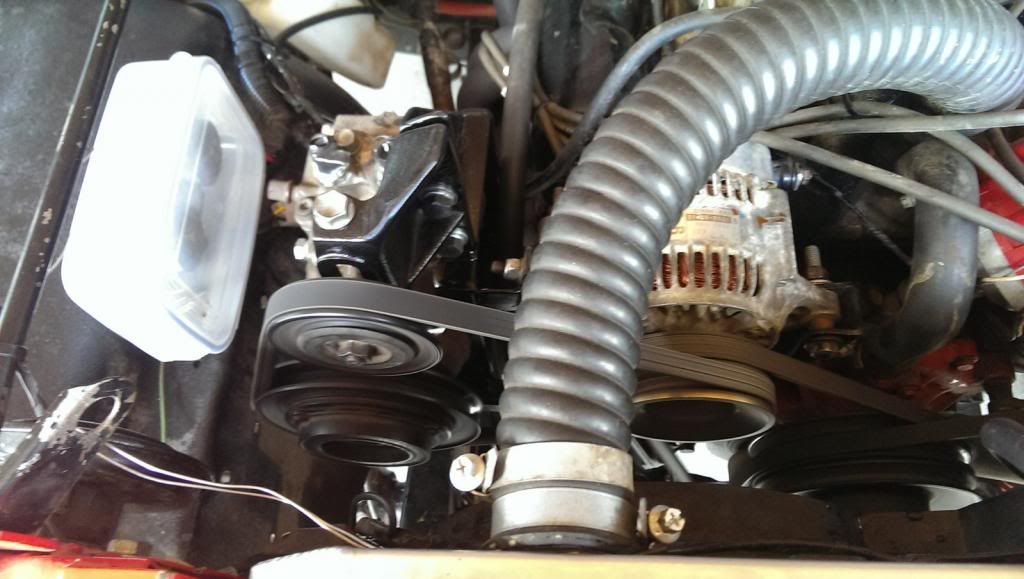

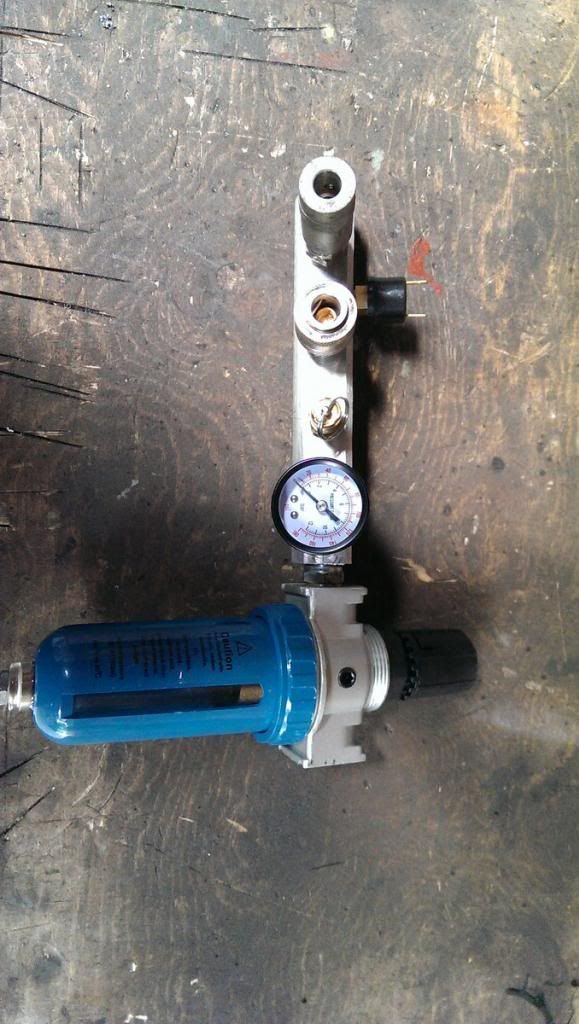

Managed to get some time at the Jeep today so I finished off the welding, got the bracket painted and reinstalled everything. I had my finger crossed when I fired her up, but everything was lined up right and it ran smoothly. Now just for my tank and a bit of plumbing and its all done. Oh and I got my manifold completed so here's a pic of that also.





Logged

UKJeeper

  • Guest
Re: On board air
« Reply #27 on: July 17, 2013, 09:02:09 PM »
How, exactly, do you "cross a finger"?...
Logged

IrishCJ6

  • Guru
  • *
  • Guru: 3
  • Offline Offline
  • Posts: 1033
Re: On board air
« Reply #28 on: July 17, 2013, 09:37:33 PM »
HaHa, my mistake, bloody hen pecking one finger typing and not proof reading. Should have said "finger's crossed" :003:
Logged

Cockney Boy

  • Guest
Re: On board air
« Reply #29 on: July 17, 2013, 09:44:06 PM »
Quote from: UKJeeper on July 17, 2013, 09:02:09 PM
How, exactly, do you "cross a finger"?...

Tim are you a teacher by chance? Desk full of red pens and sheets of stars  :icon_biggrin:
Logged

IrishCJ6

  • Guru
  • *
  • Guru: 3
  • Offline Offline
  • Posts: 1033
Re: On board air
« Reply #30 on: September 27, 2013, 09:28:47 PM »
Time for an update, things been pretty slow, and I need some skilled welding done thankfully one of the giys in the club here can tig weld

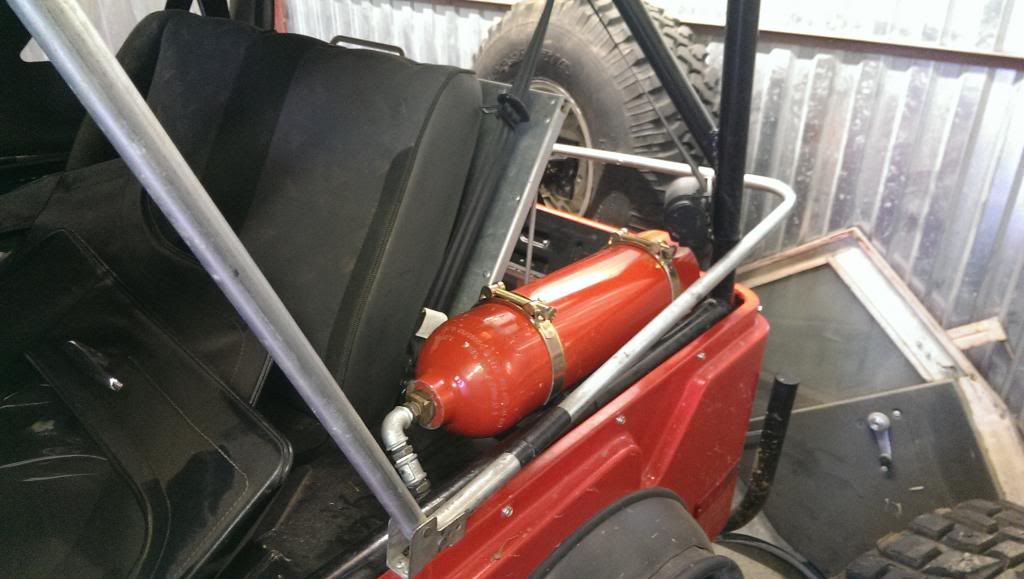

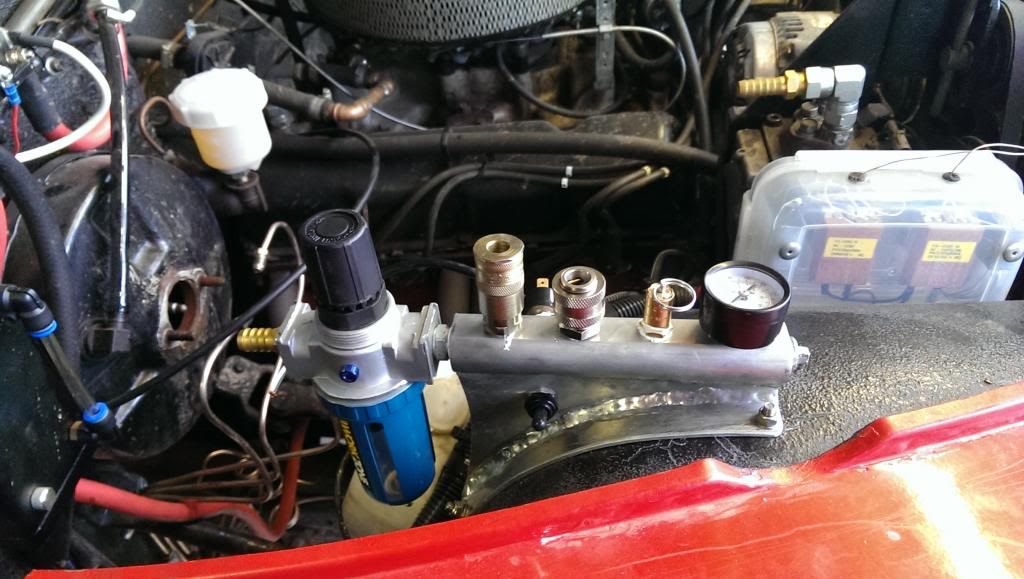

I have now got the tank mounted and plumbed to the fire wall and the manifold installed and ready for connection.







Logged

IrishCJ6

  • Guru
  • *
  • Guru: 3
  • Offline Offline
  • Posts: 1033
Re: On board air
« Reply #31 on: September 30, 2013, 07:26:01 PM »
Got it finished today,

Did a couple of trial runs, my tyres (33x12.5x15) from 10 PSI to 30 PSI (at idle 800 rpm) in 1 min 40 sec, (at 1800 rpm) 60 sec flat. Now that isn't bad is it.

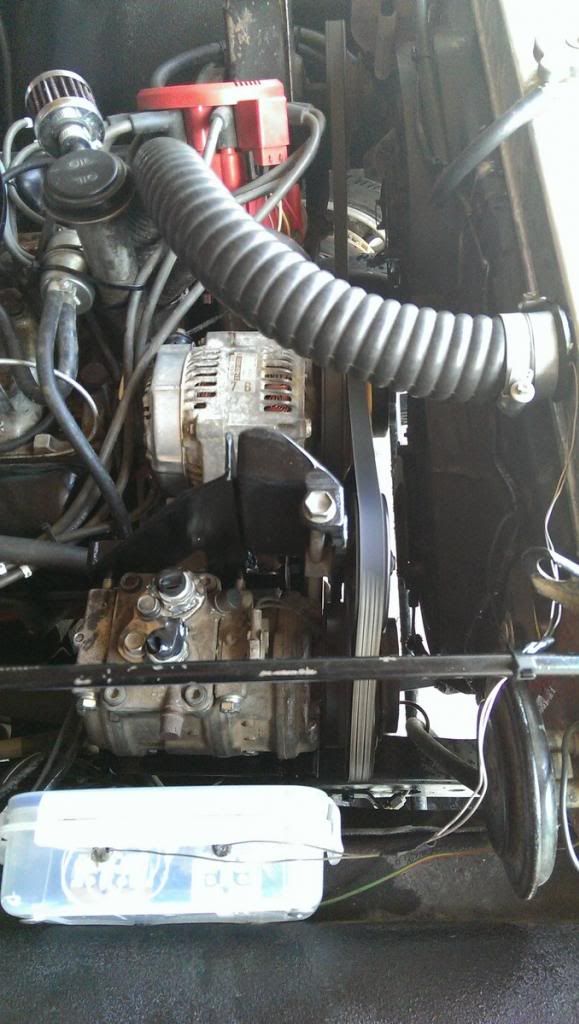

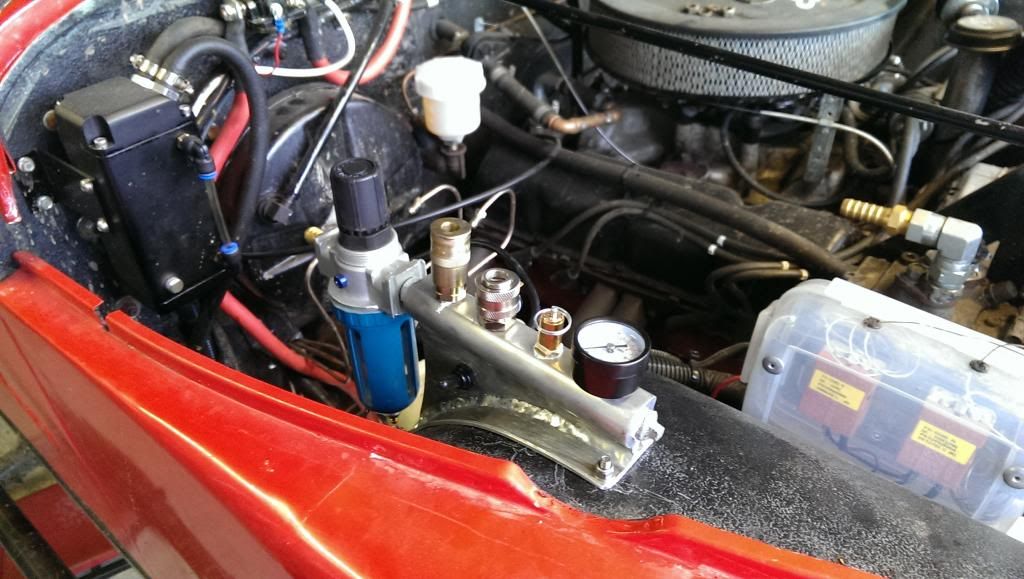

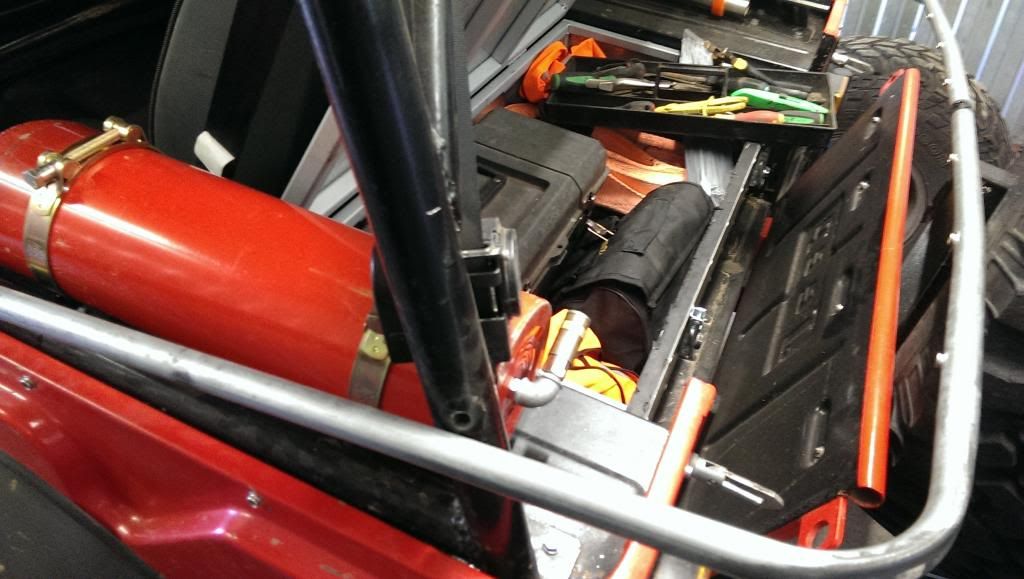

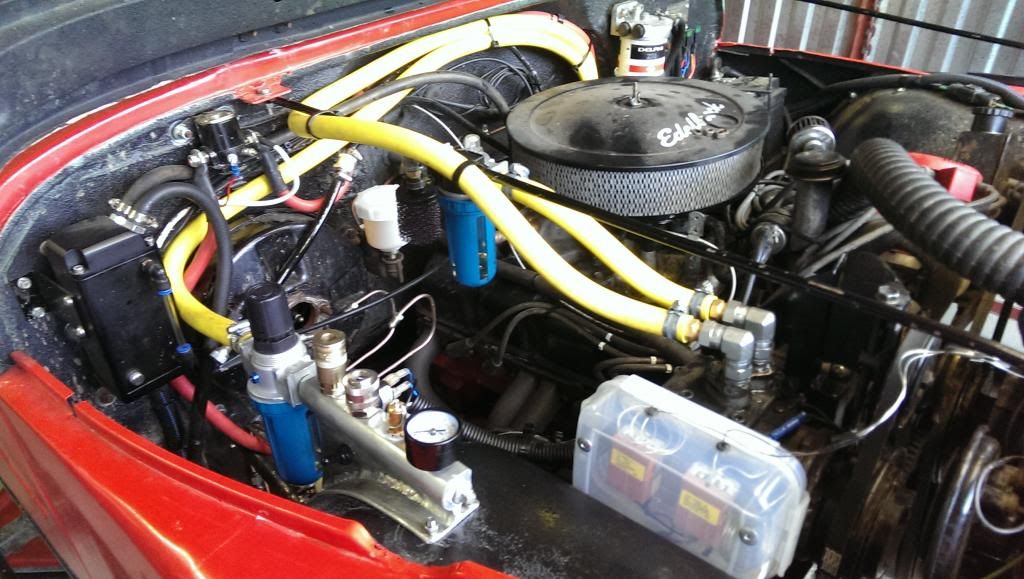

A couple of shots of the finished article




Logged

bigjeepzj

  • Club Member
  • Guru
  • *
  • Guru: 22
  • Offline Offline
  • Posts: 3438
  • lift it, brake it, Fix it brake it, fix it again
Re: On board air
« Reply #32 on: September 30, 2013, 07:35:57 PM »
Nice one  :icon_super:
Logged

UKJeeper

  • Guest
Re: On board air
« Reply #33 on: September 30, 2013, 09:00:44 PM »
Looks good. What (yellow) hoses are those? I've always had problems with engine heat with the ones i use on my OBA.
Logged

IrishCJ6

  • Guru
  • *
  • Guru: 3
  • Offline Offline
  • Posts: 1033
Re: On board air
« Reply #34 on: September 30, 2013, 09:11:01 PM »
They are just a heavy duty double wall air hose. I just brought them off an online air compressor warehouse. €3.50/m
Logged
